1955 - 1964 Chevy TRI 5 / Fullsize Hydraulic Brake Assist Unit - Model # 3010L
o CNC Machined T6 billet aluminum direct fit firewall mounting plate design
o This model fits the early GM "long rod / deep" master cylinder design
o This model for use with small block engines and floor shifted transmission
o All engines with PS pump on driver's side - compatible with rack and pinion conversions
o For use with disc / drum or disc / disc brakes (not for use with 4 wheel drum brakes)
o Features an adjustable brake pedal rod to allow for a range of brake pedal height adjustment
o 6 3/4 " installed length from firewall to MC mounting flange - no firewall modifications required
NOTE: Use Model # 4010 / 4610 for column shifted trans or Big Block with tall valve covers
* OPTION 1: BASE MODEL

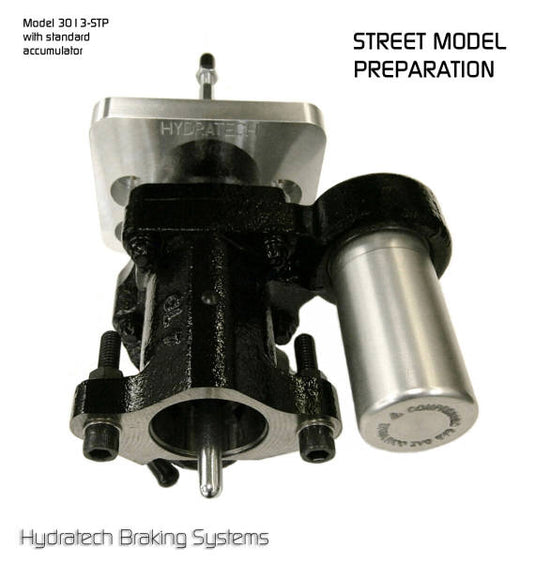

* OPTION 2: STREET PREPARATION
* OPTION 3: FULL SPECIAL SHOW PREPARATION
* All of our components are 100% BRAND NEW! Never rebuilt or remanufactured "new"
* All systems are fully dyno tested for proper operations during manufacture
* All brake assist systems are carefully prepared by experienced, skilled craftsmen.
* All cast iron master cylinders are clear coated and oven baked, supplied with OE tube nuts
* All items produced are the highest quality available and extensively inspected before shipment
