SKU: 20185

Dual 485C OBA Gen. 2

Vendor VIAIR
Regular price $1,280.95
Sale price $1,280.95 Regular price $1,459.00
Sale Sold out
Unit price
Shipping calculated at checkout.
This is a pre order item. We will ship it when it comes in stock.

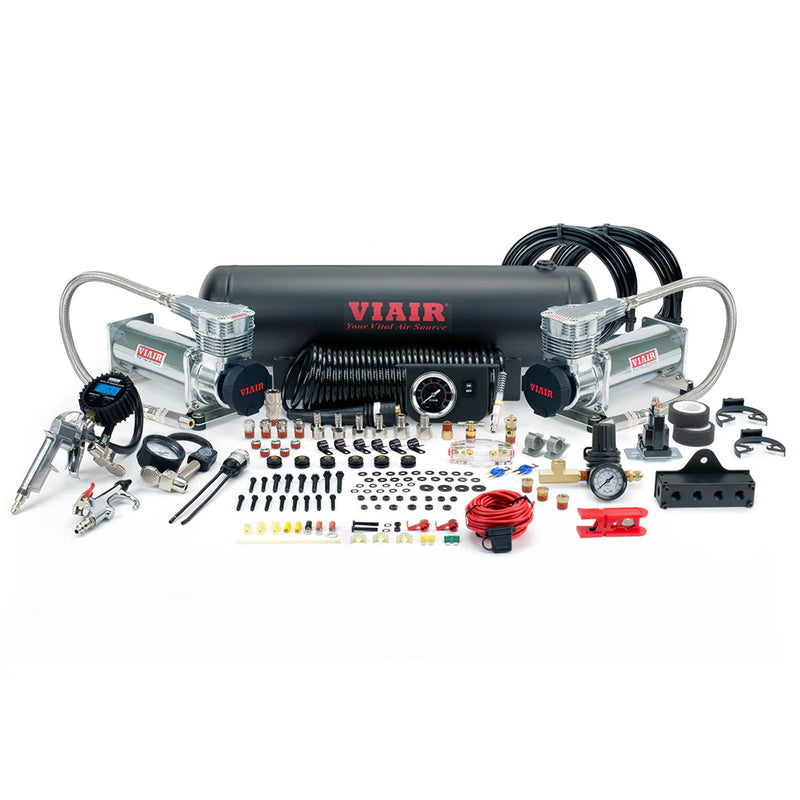

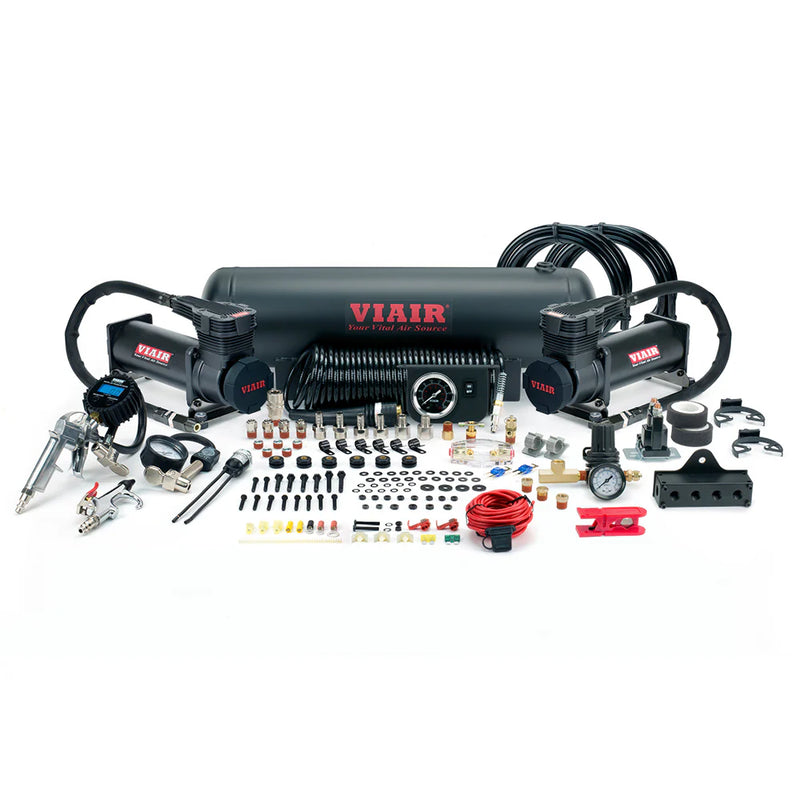

VIAIR’s Dual 485C Onboard Air System (OBA) is our first OBA with new 485C Gen. 2 compressors that provide 100% duty cycle at 200 PSI. This pre-packaged compressed air solution includes: two Platinum or Stealth Black 485C compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system.

The 485C features upgraded internal components that make it a true 200 PSI-rated working pressure pump, and has newly designed thicker vibration isolators that absorb vibration and sound. The modern-inspired head design highlights an eye-catching setup. This Gen. 2 Onboard Air System delivers the vital air source for numerous pneumatic applications.



– 2.5 Gallon Matte Black VIAIR Air Tank (200 PSI)
– (2) 485C VIAIR (Platinum or Stealth Black) Compressors
w/Thermal Overload Protectors
– Illuminated Dash Panel Gauge Kit, Black Face 200 PSI
– Digital Tire Inflation Gun (180PSI)
– 0-220 PSI Pressure Regulator
– Sealed Pressure Switch (165 PSI on, 200 PSI off)
– 1/4” Drain Cock
– Heavy Duty 80-Amp Relay
– Mini ANL Fuse Holder with 60-Amp Fuse
– 1/4” Quick Connect Coupler (M)
– 1/4” 250 PSI Safety Valve
– (4) 1/4” NPT(M) to 1/4” Airline Straight Push to Connect Fittings
– 6-Port Billet Manifold with Mounting Bracket (1/4”)
– (2) 20ft. 1/4” Air Line Included
– 5pc. 1/4” NPT Plugs Kit
– Extension Braided Black Coil Hose
– Rubber Tip Blow Gun
– 3-in-1 Air Down Gauge
– Stainless Steel Air Line Cutter
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 200 PSI
– Max. Working Pressure: 200 PSI
– Max. Air Tank Size: 10.0 Gallon
– Combined Max. Amp Draw: 46-Amps
– Ingress Protection Rating: IP67
– Dimensions: 10.63″L x 4.1″W x 6.44″H (Each Unit)
– Net Weight: 22.10 lbs.
